Secure a GCP Backend with Zuplo Upstream Auth

When using any API gateway as your API's entry point, it is critical that only traffic that originates from the Gateway is allowed to call your backend. There are many way to to this depending on your requirements and how your backend is hosted. This article will explain how to use Google IAM to secure a GKE cluster so that only requests made through your Zuplo API Gateway will be allowed to call your GKE ingress.

Using GCP IAM to authorize your Zuplo Gateway to make requests to your backend utilizes Googles core IAM system known as "Identity Aware Proxy" to secure public IP address from unauthorized access. When correctly configured, this will ensure that no unauthorized access makes it to your application.

While it is also possible to enforce authorization within your application itself - for example using JWT Authentication. The key difference is that by using your Cloud providers identity and authorization system, you are ensuring that unauthorized requests are blocked before they even touch your backend. This provides protection from any potential security vulnerabilities in your core, web server, or operating system.

Note

This article uses GKE as the example backend, but any GCP service that can be setup behind an HTTP Load Balancer can be used.

The diagram below shows how the end-to-end system interacts. The important steps to this process are:

The client makes a request to your Zuplo API Gateway
The Zuplo API Gateway enforces any policies (i.e. authentication, authorization, rate limiting)
The Zuplo API Gateway proxies the request to the public IP address of your GCP Load Balancer. Zuplo adds authorization information to the request that identify the request as coming from Zuplo
GCP Identity Aware proxy validates that the request comes from an authorized Service Account identity. Unauthorized requests are rejected.
Authorized requests are forwarded on through your GKE ingress to your backend.

flowchart LR
    c((Client))-- API Key -->z[Zuplo]
    z-- GCP Service Account -->ip[Public IP Address]
    subgraph gcp[Google Cloud Network]
    ip-->iap{GCP Identity\n Aware Proxy}
    iap-- Not Authorized -->reject[Response: 401 Unauthorized]
    iap-- Authorized -->lb[GCP Load Balancer]
    lb --> gke[GKE Ingress]
    gke --> Backend
    end

Zuplo Gateway Identity#

Requests that are proxied from Zuplo to your GCP Load Balancer use the Upstream GCP Service Auth Policy to authenticate the request via a GCP Service Account. The policy appends an authorization header to the request that the GCP Identity Aware Proxy uses to determine if the request is authorized or not.

Using this system means that you can uniquely identify requests that come from Zuplo as a their own identity. This means all request logs can be identified by their source - i.e. your Zuplo Gateway, another system also using a GCP Service account, a developer testing an internal system, etc.

Multiple Service Account

While not normally needed, it is possible to configure multiple Upstream GCP Service Auth Inbound policies in order to provide fine-grain authorization to your internal resources by Service Account. For example, if you had two Zuplo projects - one for external users and one for internal users - each could use its own identity.

For instructions on how to configure upstream GCP IAM auth, see the Upstream GCP Service Auth Policy document

GCP Configuration#

Documentation on configuring GCP Identity Aware Proxy can be found on Google's documentation. Below are a few links on how to configure the proxy with several common backends.

Cloud Run

Cloud Run doesn't need to use IAP in all cases. It is possible to restrict Cloud Run to require IAM authentication in order to invoke the service.

Example#

To see how this works in action, follow the steps in Google's document Set up an external Application Load Balancer with Ingress. This will configure a GKE cluster with a simple "hello world" web application behind an HTTP Load Balancer. At the end of the tutorial, you should have a public IP address that serves a simple web application.

You can test the request with a simple curl command.

curl http://34.111.91.10/
Hello, world!
Version: 1.0.0
Hostname: web-58756b54cc-7hdcw

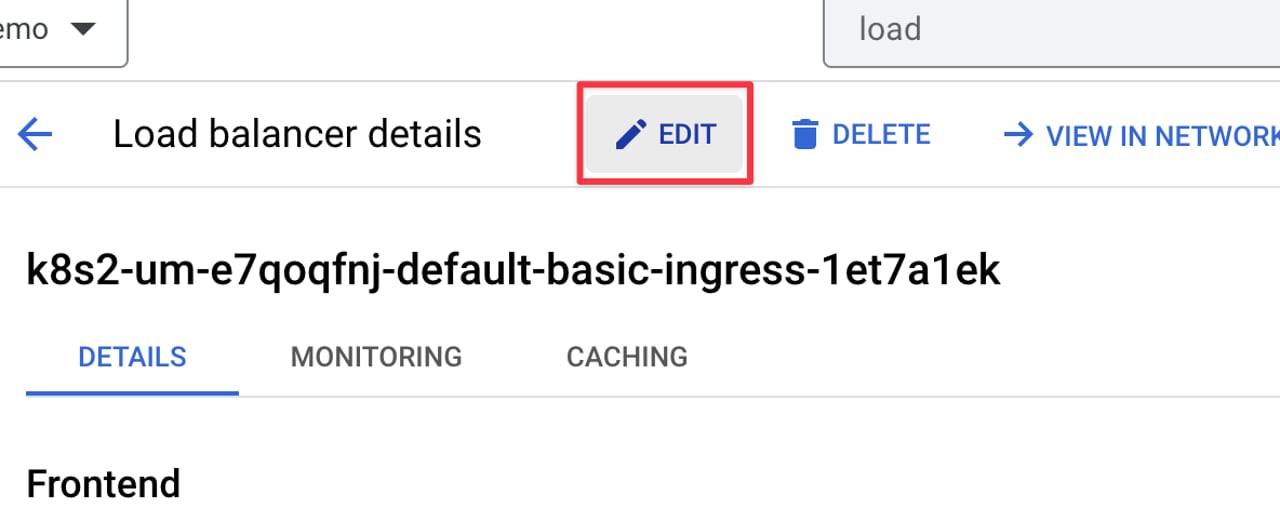

In order to securely proxy traffic from Zuplo to GCP, you'll need to secure your traffic over an SSL connection. Navigate to the GCP portal to manage your load balancer and select the load balancer that was created previously. Click, Edit on the load balancer.

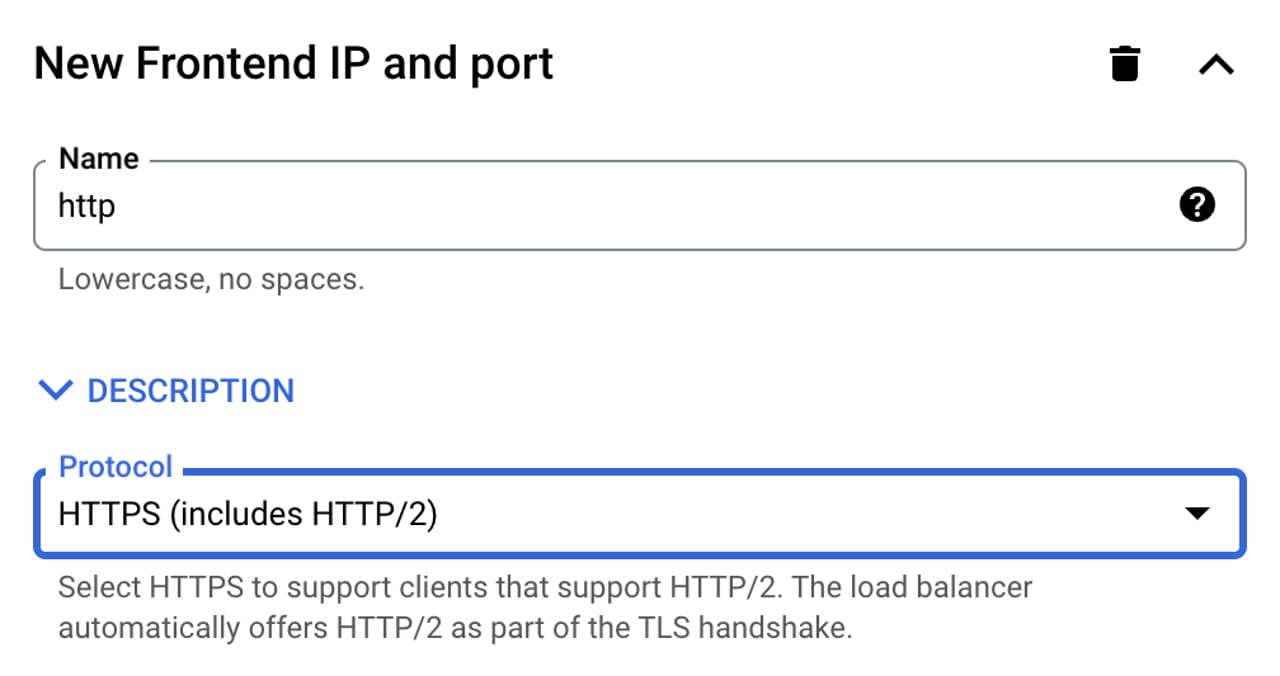

Next, click ADD FRONTEND IP AND PORT. Enter the name and select HTTPS as the protocol.

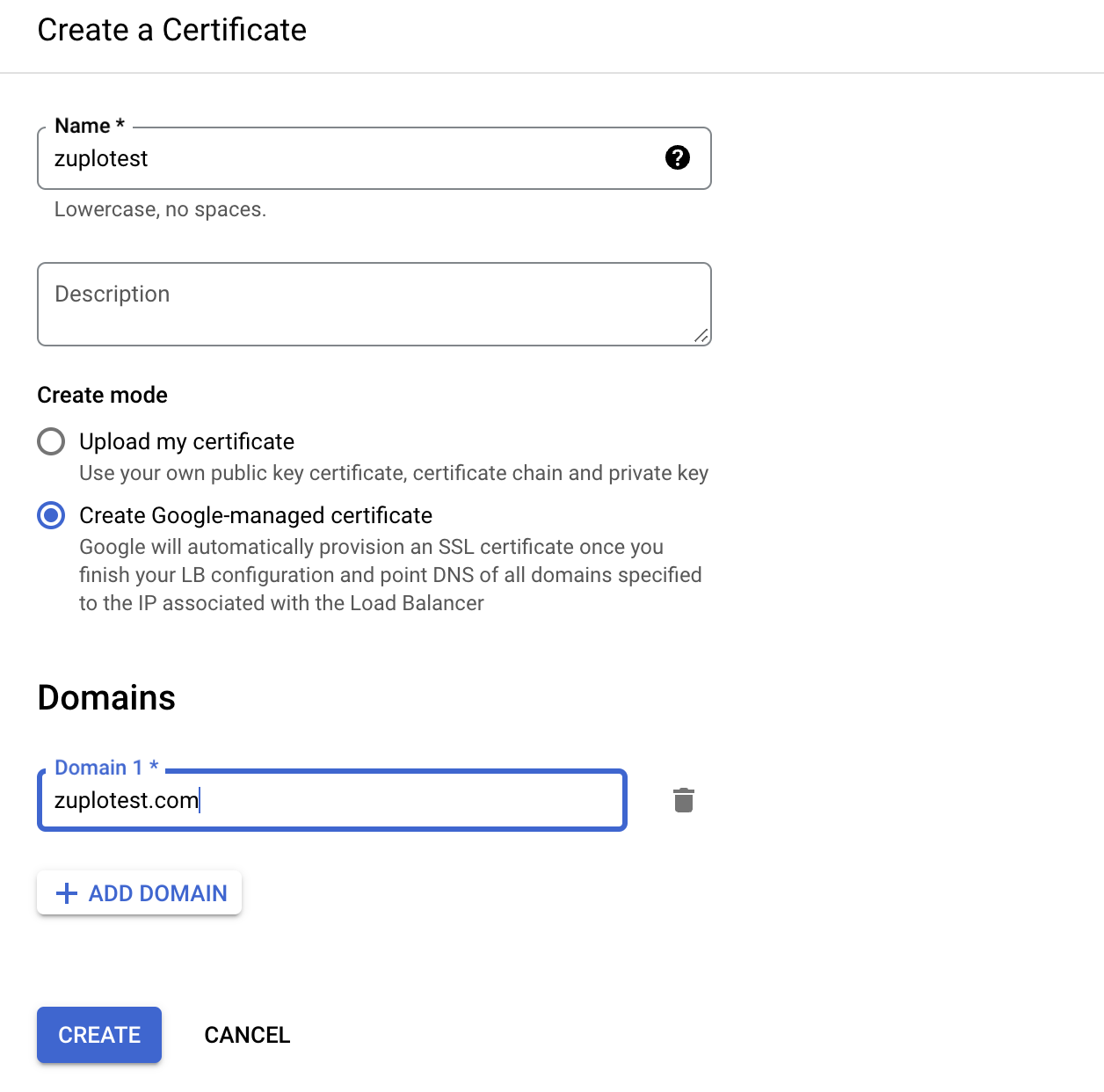

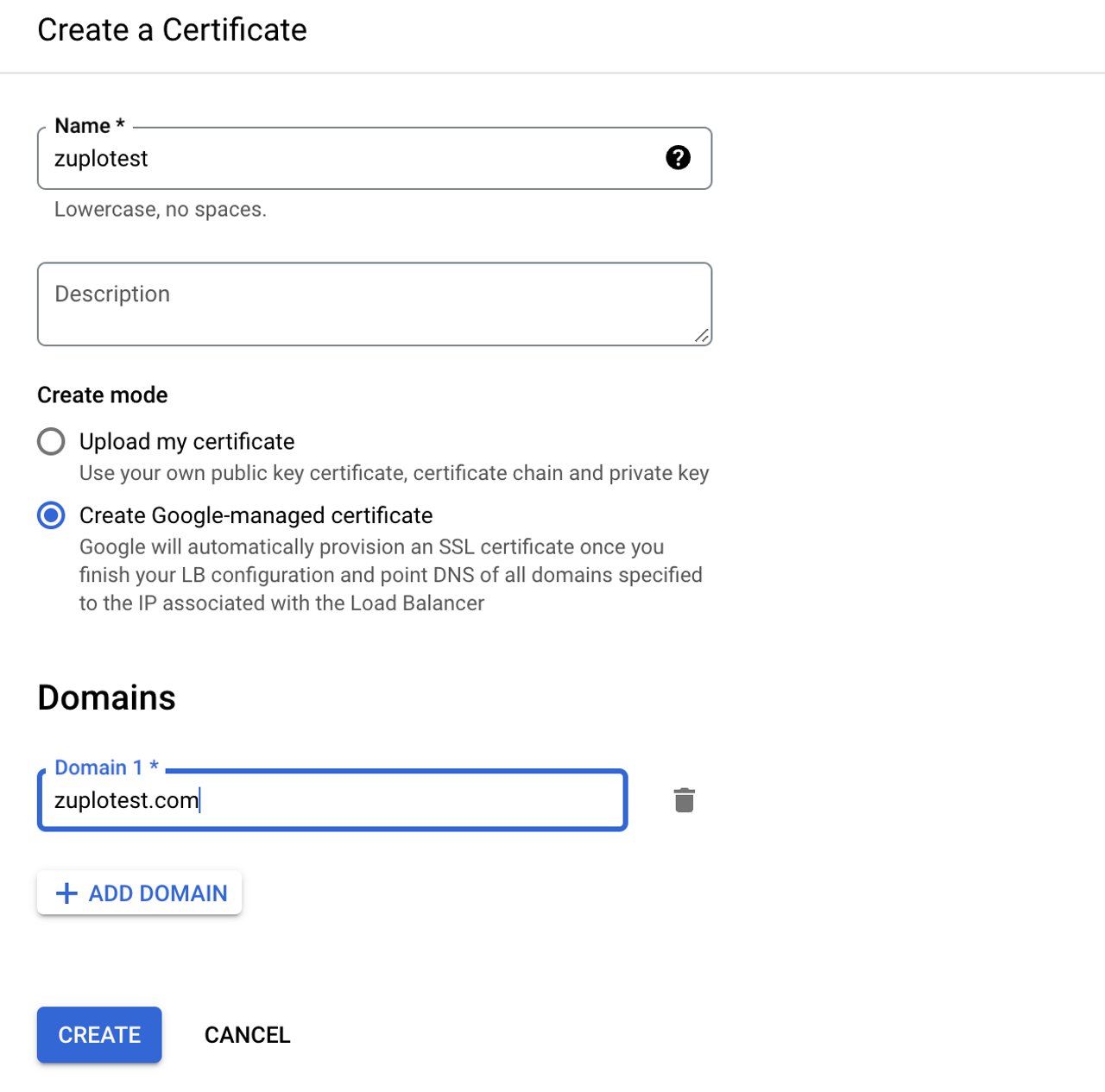

Then click Add a Certificate. Select Google-managed Certificate and enter your domain name.

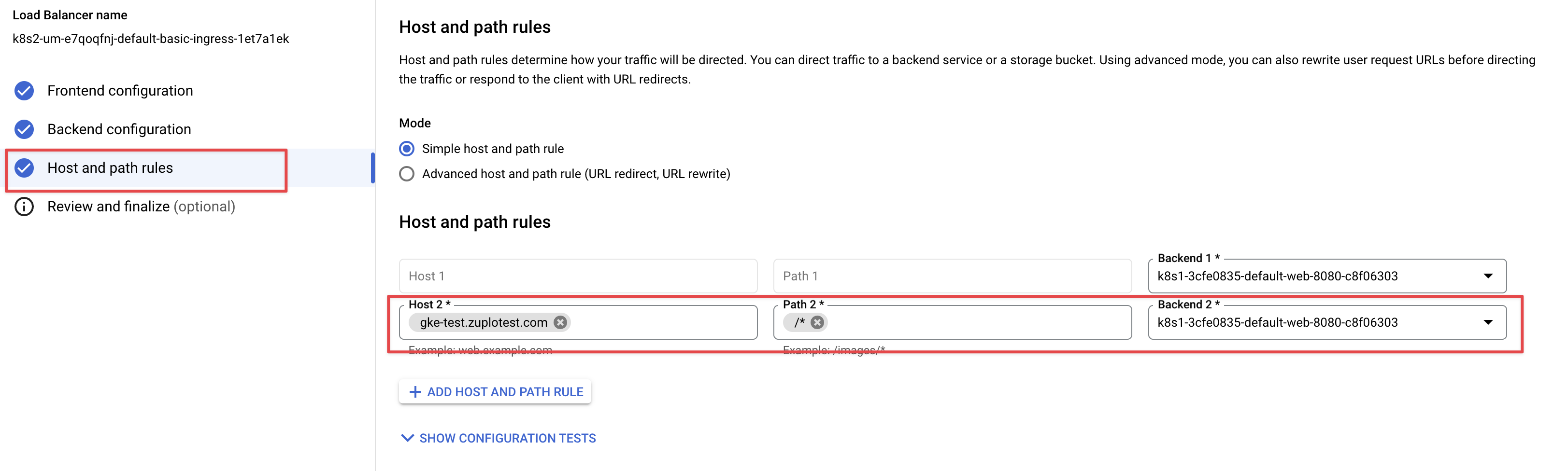

Next, select Host and path rules and enter the domain and associate it with the backend.

Click Done and then Update to update your Load Balancer. It will take a few minutes to issue the SSL certificate for the domain.

After the Load Balancer updates you should be able to request your site using the configured domain via HTTPS.

curl https://api.example.com
Hello, world!
Version: 1.0.0
Hostname: web-58756b54cc-7hdcw

Checkpoint

At this point, your backend on GKE is exposed on the public internet via a GCP HTTP Load Balancer via HTTP and HTTPS. For this demo, we won't go through the changes, but in production you should not expose an HTTP endpoint on your API.

Enabling Identity Aware Proxy#

To enable Identity Aware Proxy on your Load Balancer, follow googles document Enabling IAP for GKE

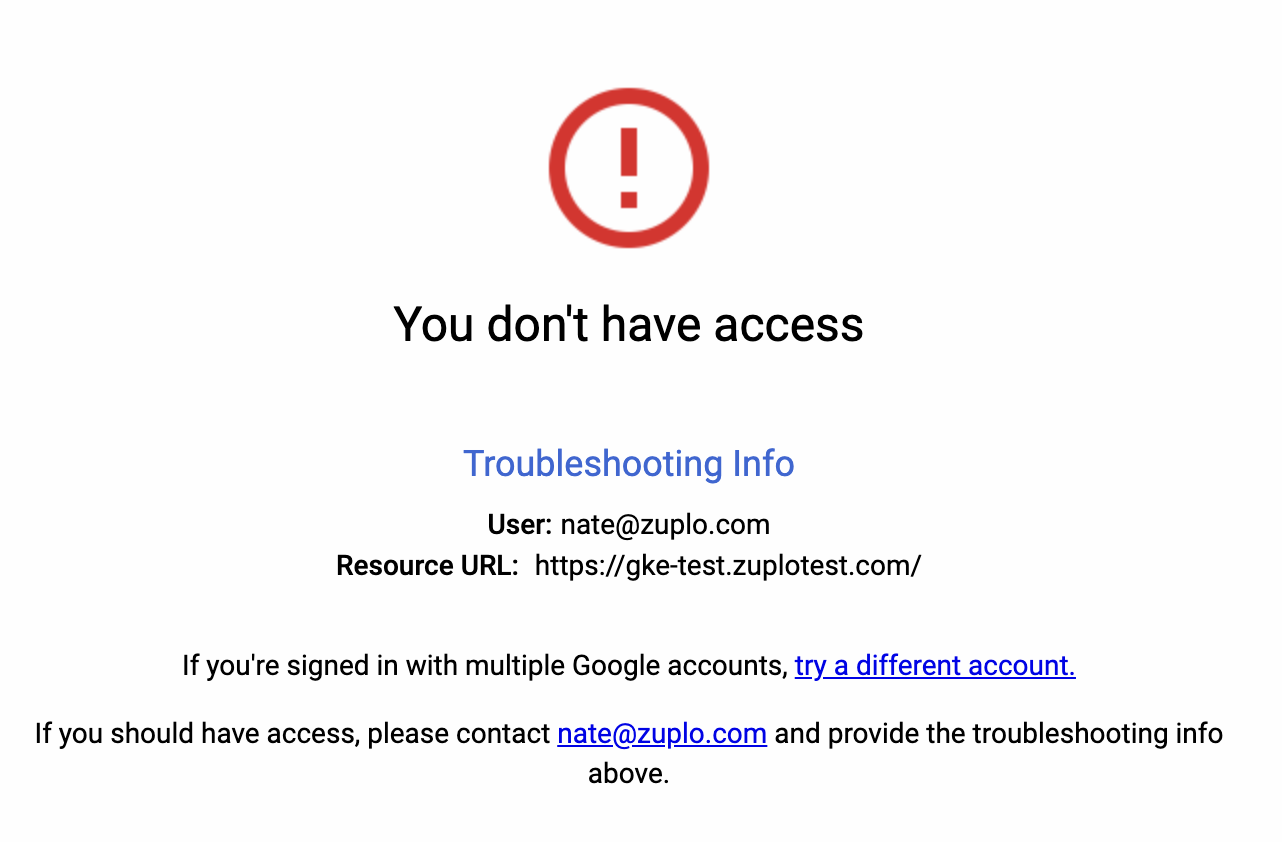

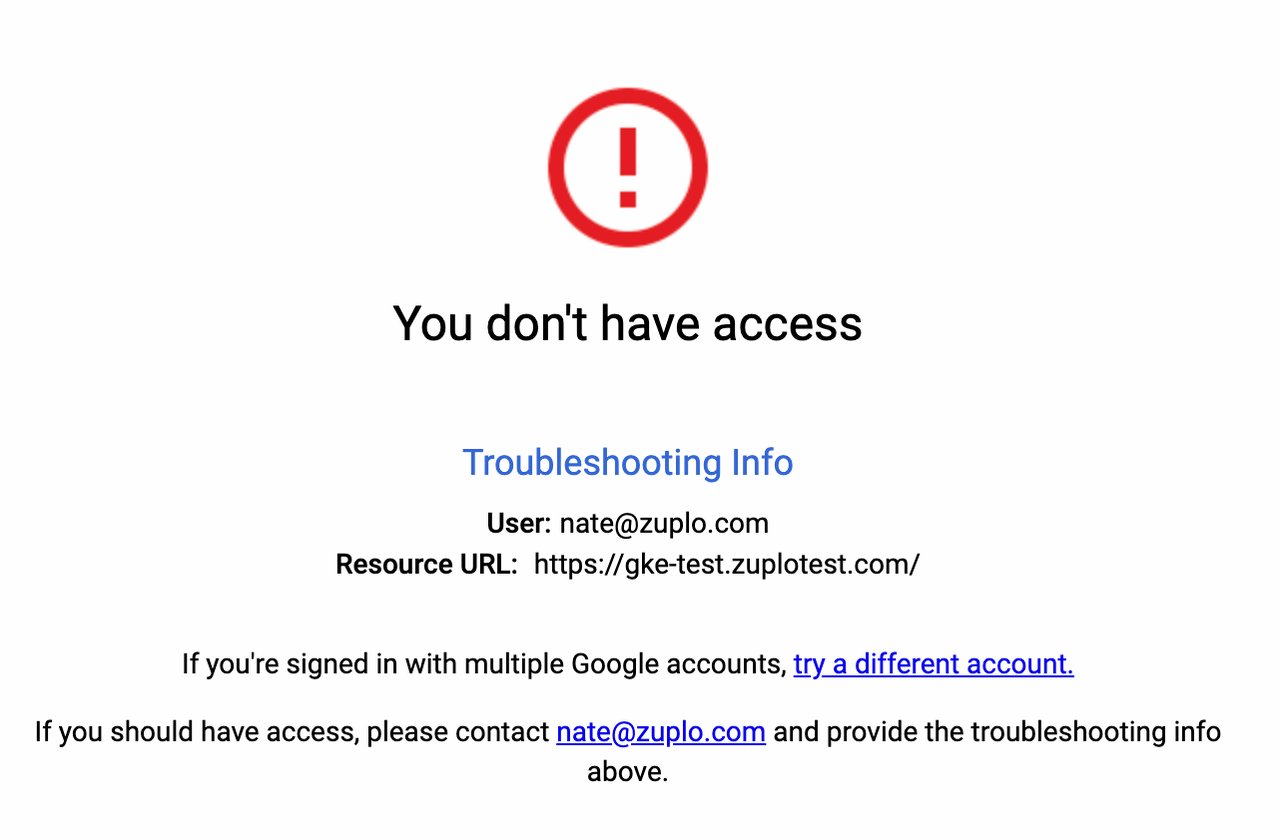

After you have enabled IAP, if you try to open your example API in the browser you will now be prompted to authenticate using your Google Account. If you do so you be shown a screen that blocks access to the application.

Your API is now completely inaccessible to unauthorized requests.

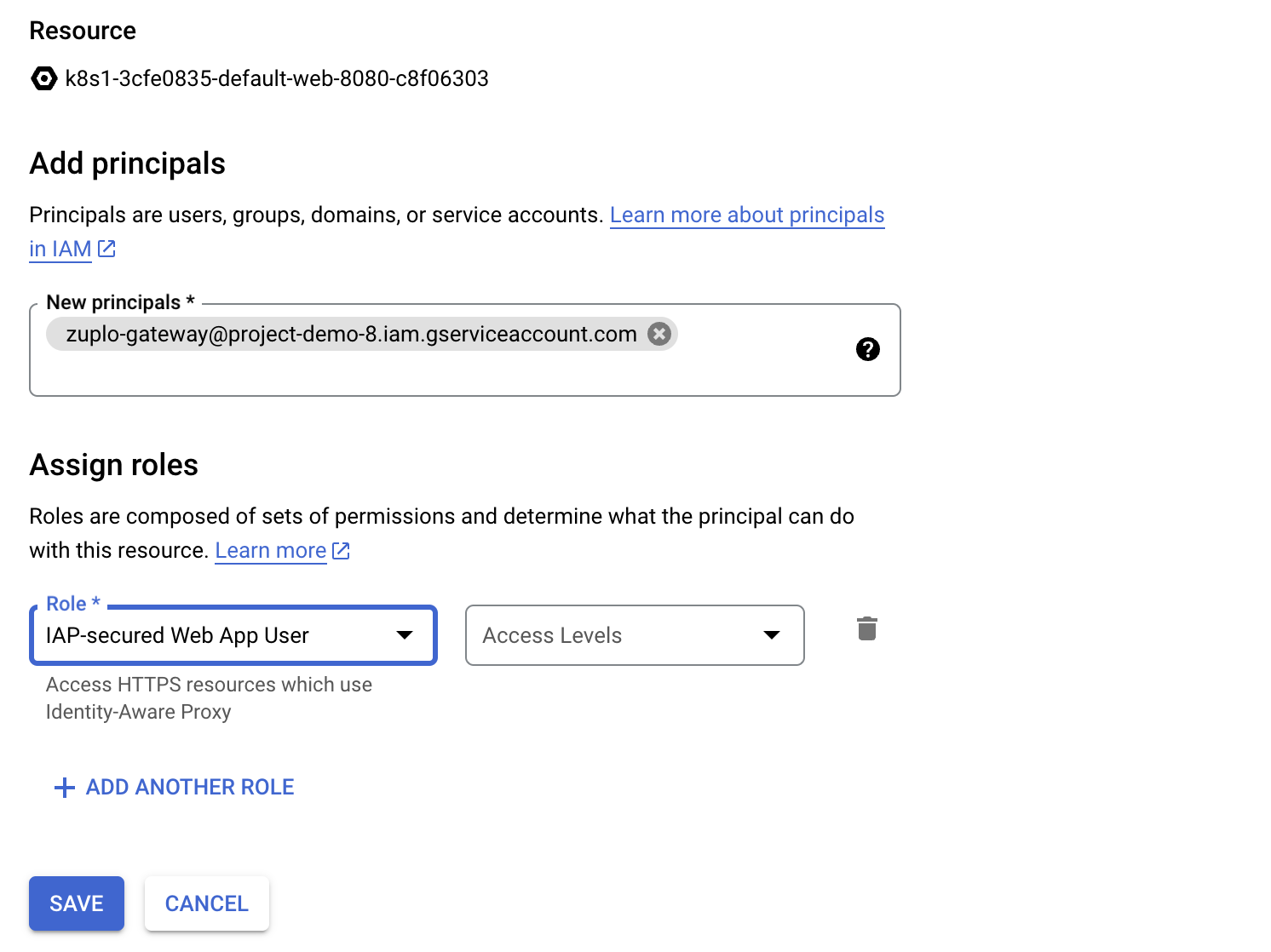

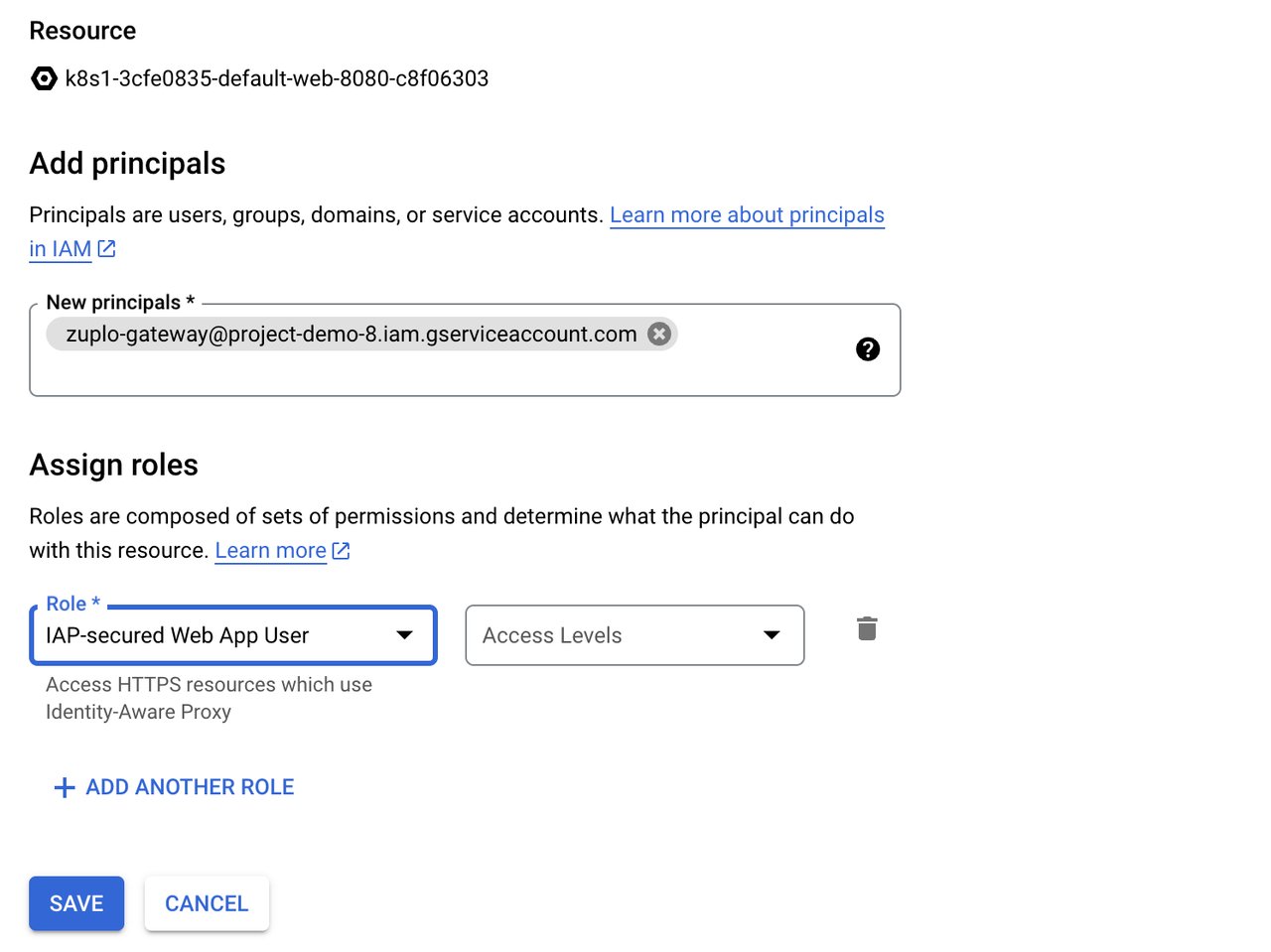

In order to allow your Zuplo Gateway access you need to grant it's service account permission to call the IAP protected API.

Authorize Zuplo to Call the API#

The last thing required is to configure Zuplo with a service account and policy so that it can securely call your API. Follow the instructions on the Upstream GCP Service Auth Policy document to setup the policy.

With the policy setup, create a route in your Zuplo portal that points to your API. When you make a request you will once again see a successful response.

curl https://zuplo-gateway.example.com
Hello, world!
Version: 1.0.0
Hostname: web-58756b54cc-7hdcw

You can now add additional policies on Zuplo in order to authenticate requests, add rate limiting, etc.
